178327-2
Manufacturer:
TE Connectivity
Mfr.Part #:
178327-2
Datasheet:
Description:

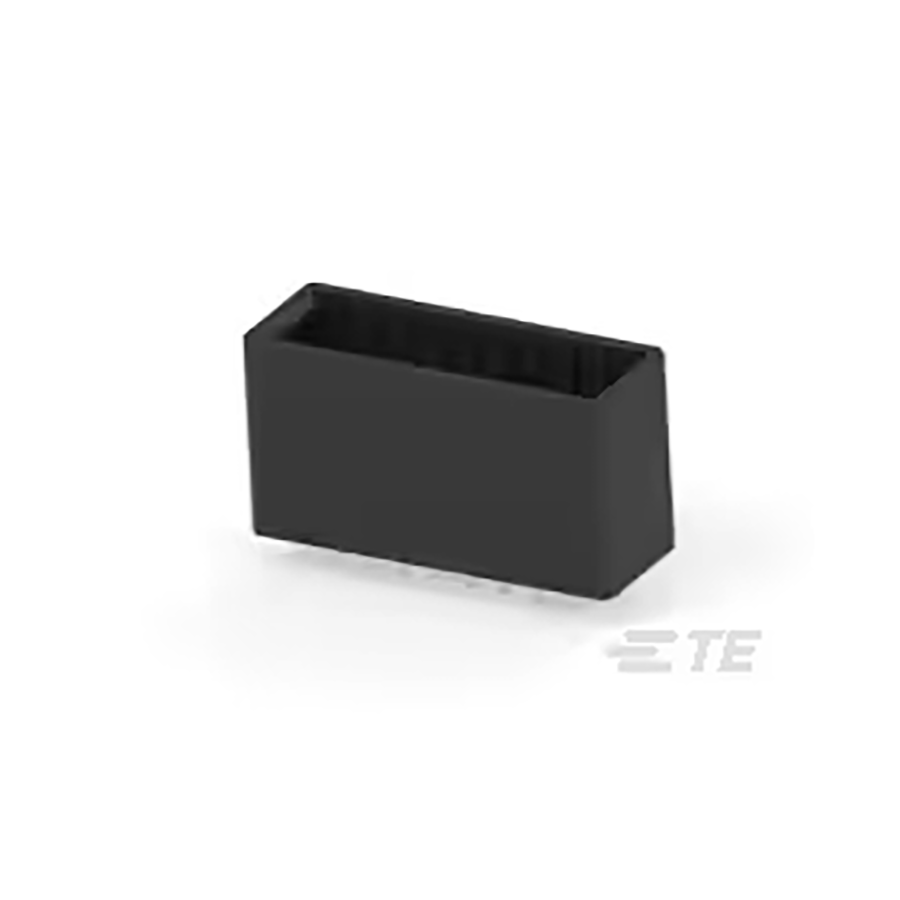

Headers and Wire Housings Through Hole Header, Plug, Tab Number of Positions:16 Pitch:3.81 mm
| Parameter | Value |
|---|---|
| Length | 40.64 mm |
| Width | 14.4272 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 21.59 mm |
| Packaging | Tube |
| Voltage Rating | 250 V |
| Depth | 14.43 mm |
| Halogen Free | Halogen Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin, Gold |
| Pitch | 3.81 mm |
| Number of Terminals | 16 |
| Current Rating | 8 A |
| Flammability Rating | UL94 V-0 |
| Approvals | UL |
| Orientation | Vertical |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Black |
| Gender | Male |
| Shielding | Unshielded |
| Number of Contacts | 16 |
| ELV | Compliant |
| Connector Type | Header, Plug, Tab |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Row Spacing | 5.08 mm |
| Housing Material | Nylon |
| Number of Ports | 1 |
| Connector System | Wire-to-Board |
| Contact Style | Straight |
| Max Voltage Rating (AC) | 250 V |
| Contact Current Rating | 8 A |
| Housing Color | Black |
| PCB Thickness | 1.6002 mm |
| Tail Length | 3.8 mm |
| VDE Tested | No |
| Preloaded | Yes |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Contact Retention | Without |
| Mating Retention | With |
| Mating Alignment | With |
| Termination Post Length | 3.81 mm |
Stock: 5
Distributors
pcbx
pcbxUnit Price$3.25747
Ext.Price$3.25747
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.25747 | $3.25747 |
| 10 | $2.77296 | $27.72960 |
| 25 | $2.63019 | $65.75475 |
| 50 | $2.49477 | $124.73850 |
| 100 | $2.36633 | $236.63300 |
| 300 | $2.24450 | $673.35000 |
| 500 | $2.12894 | $1064.47000 |
| 1000 | $2.01935 | $2019.35000 |
